Led DMX Decoder Constant Voltage DC12V-24V 3A*16CH RJ45 16 channel output

Name: Led DMX Decoder Constant Voltage DC12V24V 3A16CH RJ45 16 channel output
Brand: vyeofar
Price: 1 USD

Best Led DMX Decoder Constant Voltage DC12V-24V 3A*16CH RJ45 16 channel output wholesale

Brand Name : vyeofar

Model Number : LT-916-OLED

Certification : CE/Rohs

Place of Origin : China

MOQ : 10

Price : negotiable

Payment Terms : D/A, D/P, L/C, T/T, Western Union, MoneyGram,Paypal

Supply Ability : 1000/month

Packaging Details : White box

Material : ABS

Color : White

Feature : 16 Channel DMX decoder

output : 3A*16CH DMX CV decoder

Voltage : DC 12-24V

Power : 1152W

Contact Now

Led DMX Decoder Constant Voltage DC12V-24V 3A*16CH RJ45 16 channel output

Product Introduction:

1. Designed for Hi-power multiple channels application, 16 channels output, and up to 1152W output power.

2. Easy operation with LED screen and the touch buttons.

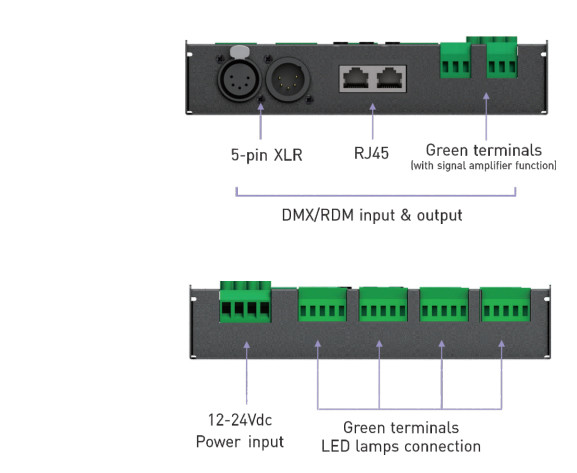

3. Support 4 kinds of DMX ports: 3-pin XLR, 5-pin XLR, RJ45 and green terminal (with signal amplifier function).

4. With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting, equipment recognition, etc.

5. With short circuit protection and over current protection, as well as warning function when fault.

6. With fast self-testing function.

7. High/low PWM frequency for optional.

8. 16bit (65536 levels) / 8bit (256 levels) grey level optional.

LT-916-OLED
Input signal	DMX512/RDM
Input voltage	DC12V-DC24V
Max load current	3A x 16CH Max 48A
Max output power	(0~36W...72W) x 16CH Max. 1152W
DMX512 socket	5-pin XLR, RJ45, Green terminal
Control mode	Dimming/CT/RGB/RGBW
DIM Curve	0.1-9.9
Grayscale level	8bit(256 levels)/16bit(65536 levels)
Photoelectric Isolation	Yes
Working temperature	-30-65C

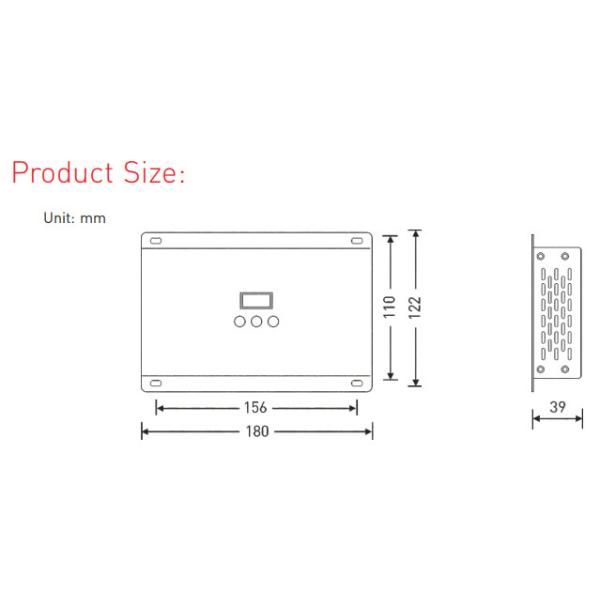

Dimension	L180xW122xH39mm
Package Size	L193xW127xH41mm
Weight (G.W)	730g
